IBG mark

VP 230 KH

Voltage:

1,2 V

Capacity:

23 Ah @ 1 hrs discharges

Upper charging voltage: :

1,425 V

Specifična gustina elektrolita:

1,3

Dimensions L x W x H:

79 x 26,5 x 214 mm

Weight:

1,09 kg

IBG mark

VP 400 KH

Voltage:

1,2 V

Capacity:

40 Ah @ 1 hrs discharges

Upper charging voltage:

1,425 V

Sp.Gravity of Electrolyte

1,3

Dimensions L x W x H:

79 x 34,5 x 236 mm

Weight:

1,50 kg

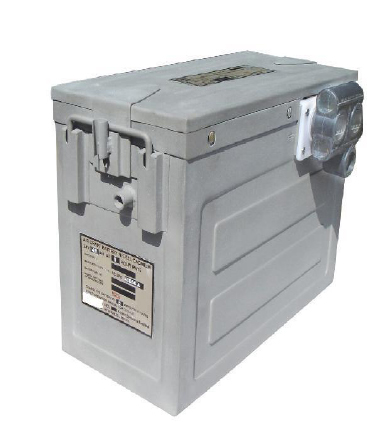

IBG mark

VB-20/23-1

Voltage:

24 V

Capacity:

23 Ah

Gornji napon punjenja:

28.5 V

Sp.Gravity of Electrolyte

1,26

Dimensions L x W x H:

340 x 223 x 226 mm

Weight:

26 kg

IBG mark

VB-20/36-1

Voltage:

24 V

Capacity:

40 Ah

Upper charging voltage:

28.5 V

Sp.Gravity of Electrolyte

1,26

Dimensions L x W x H:

361 x 160 x 265 mm

Weight:

36.4 kg

IBG mark

15STSS 45 B

Voltage:

22.5 V

Capacity:

45Ah at 5 hour rate (9 Amps discharge) till any one cell

voltage reaches to 1.2 volts

Lifespan:

9 months (6 months 45 Ah, last 3 months 40 Ah or 180 hours of flight)

Lower voltage:

20 V or 1,2 V per cell

Insulation Resistance:

10 to 200 Hz with overload accelerations of 2.5 to 4.5g

Radna temperatura:

- 50oC to + 50oC

Self-discharge:

40 Ah after 30 days of storage

Dimensions (D x Š x V):

427 x 130 x 225 mm

Weight:

17,9 kg

Application

helicopter KA-25 and aircraft MIG-21, MIG-23, MIG-27, MIG-29
